Kruskal’s Algorithm: Explanation, Example And Program

Kruskal’s Algorithm is a greedy algorithm used to build a Minimum Spanning Tree for a connected, weighted, and undirected graph. It starts by treating the graph as a forest where each vertex is its own separate tree. The goal is to select a subset of edges that connects all vertices without forming any cycles and with the smallest total edge weight. A single graph can have many spanning trees, but a Minimum Spanning Tree is the one where the sum of all its edge weights is smaller than or equal to the sum of edge weights of any other spanning tree.

How Kruskal’s algorithm works

Kruskal’s algorithm is a greedy method to find a minimum spanning tree. A greedy algorithm always picks the next edge that looks best at the moment, and this leads to the overall best solution. We start by adding the edge with the smallest weight, then keep adding the next smallest edges one by one. While doing this, we make sure all vertices are connected and no cycles are formed, so the minimum spanning tree rules are followed.

Properties of Minimum spanning tree

1. Connects All Vertices – An MST includes all the vertices of the graph, ensuring that every node is reachable from any other node.
2. No Cycles – Since an MST is a tree, it does not have any cycles or loops. This ensures that there is exactly one path between any two vertices.
3. Minimum Total Weight – The sum of the weights of all edges in the MST is the smallest possible among all spanning trees of the graph. This makes it optimal in terms of cost, distance, or any weight assigned to edges.
4. Unique or Multiple MSTs – If all edge weights are distinct, the MST is unique. If some edges have the same weight, there can be multiple different MSTs with the same total weight.
5. Exactly V-1 Edges – For a graph with V vertices, an MST always has V – 1 edges. Adding more would create a cycle, and fewer edges would not connect all vertices.
6. Subset of Original Graph – Every edge in the MST is chosen from the edges present in the original graph, and no new edges are introduced.

The steps for implementing Kruskal’s algorithm are as follows

Step 1: Remove all loops and parallel edges.
Step 2: Sort all the edges in non-decreasing order of their weight.
Step 3: Pick the least weightage edge and include this edge if it does not form a cycle. Else, discard it.
Step 4: Repeat step 2 until we get a minimum spanning tree.

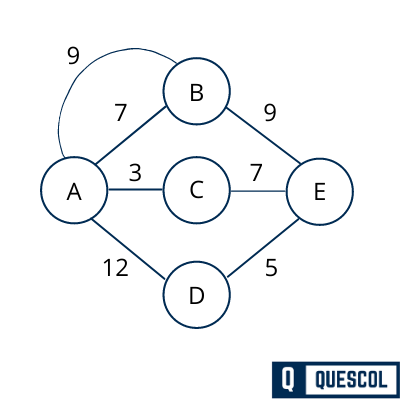

Let’s See an Example to understand Kruskal’s algorithm

Step 1 – Remove all loops and Parallel Edges

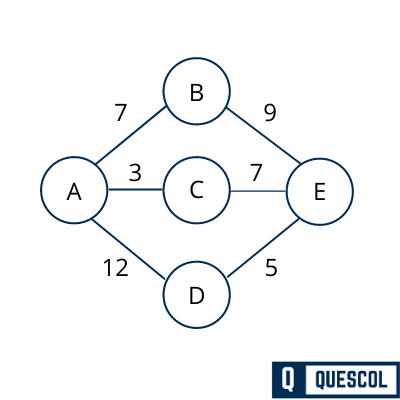

After removing parallel edge from the graph, graph will look like below.

Step 2 – Sort all the edges in non-decreasing order of their weight

AC – 3, DE – 5, AB – 7, BE – 9, CE – 7, AD – 12

Step 3 – Pick the least weightage edge and include this edge

We will add edges to the graph beginning with the one that has the least weight. We will also keep checking that this edge does not form any cycle. If a cycle is created by adding an edge or any other property that violates the spanning-tree property, then we will not include the edge in the graph.

The least cost is 3 and the edge involved is AC. We add it. Adding it does not violate spanning-tree properties, so we continue to our next edge selection.

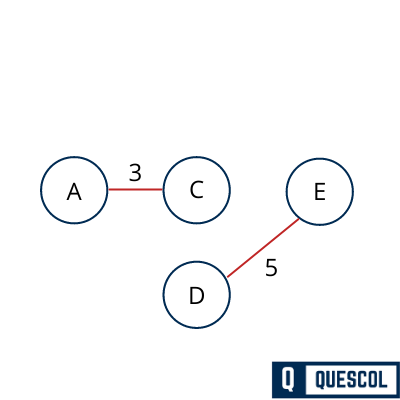

Next we will select Edge DE which have least weight 5 and not violating spanning tree properties.

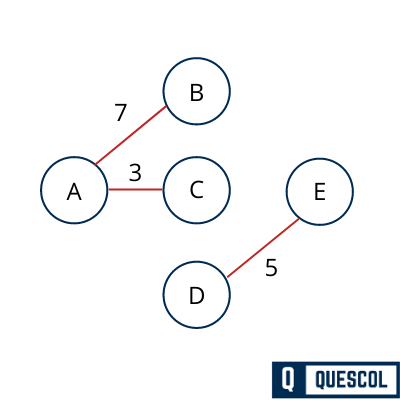

Next we will select Edge AB which have least weight 7 and not violating spanning tree properties.

Next we will select Edge CE which have least weight 7 and not violating spanning tree properties.

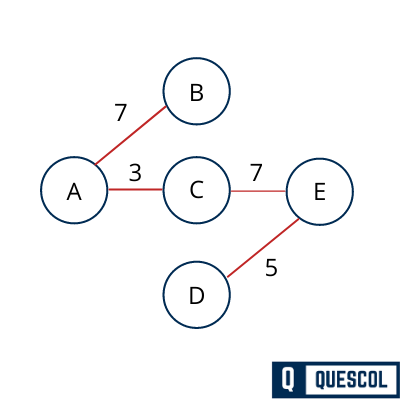

So Create Minimum spanning tree using Kruskal’s algorithm will look like above.

Program to implement Kruskal’s algorithm

#include <stdio.h>
#include <stdlib.h>

struct Edge {
    int u, v, weight;
};

// Comparison function to sort edges by weight
int compare(const void* a, const void* b) {
    return ((struct Edge*)a)->weight - ((struct Edge*)b)->weight;
}

// Find function for union-find
int find(int parent[], int i) {
    if (parent[i] == i)
        return i;
    return parent[i] = find(parent, parent[i]);
}

// Union function for union-find
void unionSets(int parent[], int rank[], int x, int y) {
    int xroot = find(parent, x);
    int yroot = find(parent, y);

    if (rank[xroot] < rank[yroot])
        parent[xroot] = yroot;
    else if (rank[xroot] > rank[yroot])
        parent[yroot] = xroot;
    else {
        parent[yroot] = xroot;
        rank[xroot]++;
    }
}

void kruskal(struct Edge edges[], int V, int E) {
    // Sort edges by weight
    qsort(edges, E, sizeof(struct Edge), compare);

    int parent[V];
    int rank[V];
    for (int i = 0; i < V; i++) {
        parent[i] = i;
        rank[i] = 0;
    }

    printf("Edges in the Minimum Spanning Tree:\n");
    int count = 0;
    for (int i = 0; i < E && count < V - 1; i++) {
        int u = edges[i].u;
        int v = edges[i].v;

        int setU = find(parent, u);
        int setV = find(parent, v);

        if (setU != setV) {
            printf("%d -- %d == %d\n", u, v, edges[i].weight);
            unionSets(parent, rank, setU, setV);
            count++;
        }
    }
}

int main() {
    int V = 4; // Number of vertices
    int E = 5; // Number of edges
    struct Edge edges[] = {
        {0, 1, 10},
        {0, 2, 6},
        {0, 3, 5},
        {1, 3, 15},
        {2, 3, 4}
    };

    kruskal(edges, V, E);

    return 0;
}

Output

Edges in the Minimum Spanning Tree:
2 -- 3 == 4
0 -- 3 == 5
0 -- 2 == 6

Explanation of Code

 1.Struct Edge

struct Edge {
    int u, v, weight;
};

The struct Edge defines an edge in the graph. Each edge has three parts: u which is the starting vertex, v which is the ending vertex, and weight which is the cost of traveling or connecting between u and v. This struct helps store all the graph edges in a single array.

2.Compare Function

int compare(const void* a, const void* b) {
    return ((struct Edge*)a)->weight - ((struct Edge*)b)->weight;
}

The compare function is used with qsort to sort all edges by their weight in ascending order. Sorting is important because Kruskal’s algorithm always starts with the edge that has the smallest weight to construct the Minimum Spanning Tree efficiently.

3.Find Function

int find(int parent[], int i) {
    if (parent[i] == i)
        return i;
    return parent[i] = find(parent, parent[i]);
}

The find function implements union-find with path compression. For a given vertex, it returns the root parent of its set. Path compression makes future searches faster by directly connecting nodes to their root parent. This function is crucial to check whether adding an edge will form a cycle in the MST.

4.Union Function

void unionSets(int parent[], int rank[], int x, int y) {
    int xroot = find(parent, x);
    int yroot = find(parent, y);

    if (rank[xroot] < rank[yroot])
        parent[xroot] = yroot;
    else if (rank[xroot] > rank[yroot])
        parent[yroot] = xroot;
    else {
        parent[yroot] = xroot;
        rank[xroot]++;
    }
}

The unionSets function merges two sets (trees) into one. It uses union by rank, meaning the tree with smaller rank is attached under the tree with larger rank to keep the structure shallow. If both sets have the same rank, one becomes the parent and its rank is incremented. This helps maintain efficiency and ensures no cycles are formed while adding edges to the MST.

5.Kruskal Function

void kruskal(struct Edge edges[], int V, int E) {
    qsort(edges, E, sizeof(struct Edge), compare);

    int parent[V];
    int rank[V];
    for (int i = 0; i < V; i++) {
        parent[i] = i;
        rank[i] = 0;
    }

    printf("Edges in the Minimum Spanning Tree:\n");
    int count = 0;
    for (int i = 0; i < E && count < V - 1; i++) {
        int u = edges[i].u;
        int v = edges[i].v;

        int setU = find(parent, u);
        int setV = find(parent, v);

        if (setU != setV) {
            printf("%d -- %d == %d\n", u, v, edges[i].weight);
            unionSets(parent, rank, setU, setV);
            count++;
        }
    }
}

The kruskal function is where the MST is actually built. First, it sorts all edges by weight. Then, it initializes parent and rank arrays for all vertices for union-find. The function loops through each edge and checks if its two vertices belong to different sets using find. If they do, the edge is added to the MST and the sets are united using unionSets. This continues until the MST has exactly V-1 edges. Every selected edge is printed as part of the MST.

6. Main Function

int main() {
    int V = 4;
    int E = 5;
    struct Edge edges[] = {
        {0, 1, 10},
        {0, 2, 6},
        {0, 3, 5},
        {1, 3, 15},
        {2, 3, 4}
    };

    kruskal(edges, V, E);

    return 0;
}

The main function defines the graph by specifying the number of vertices V and edges E. It creates an array of Edge structs representing all the edges in the graph. Finally, it calls the kruskal function to compute and display the Minimum Spanning Tree.

Time & Space Complexity of Kruskal’s algorithm

Time Complexity

Space Complexity

Real life Application

1. Designing Networks – Used to create minimum cost networks like telephone lines, electricity grids, water pipelines, or computer networks. It helps connect all points using the least amount of wiring or cost.
2. Road or Railway Planning – Helps in building roads or railways that connect all cities with the minimum total distance or cost.
3. Cluster Analysis in Data Science – Helps in grouping similar data points by connecting them with minimum “distance” or dissimilarity in clustering algorithms.
4. Approximation for NP-Hard Problems – Used in algorithms that approximate solutions for problems like the Traveling Salesman Problem or network design where exact solutions are too costly.
5. Circuit Design – Helps in designing efficient circuits by connecting all components with minimum total wire length.

Conclusion

Kruskal’s Algorithm is a greedy method to find a Minimum Spanning Tree of a connected, weighted, undirected graph. It works by selecting edges with the smallest weight one by one while ensuring no cycles are formed, until all vertices are connected. The algorithm is efficient, easy to implement using union-find, and guarantees the minimum total cost to connect all nodes. It is widely used in network design, road planning, circuit design, and data clustering, making it a practical and powerful tool in real-life optimization problems.
